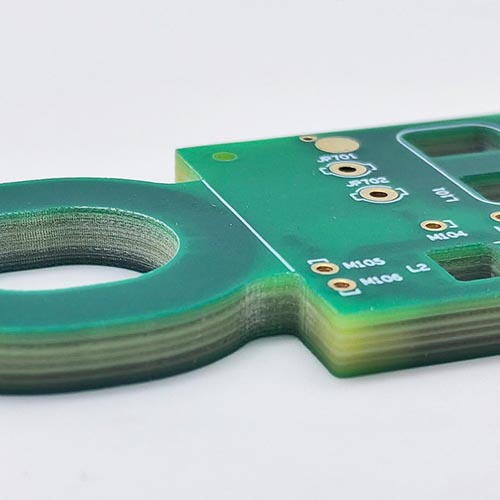

Thick copper circuit PCB

Item No.: 00142
  • Material:
    Fr4
  • Layers:
    14 Layers
  • Craft:
    Immersion gold
  • Features:
    Immersion gold
Description
Description


Welcome To Senyan

       Senyan is a PCB manufacturer, providing turnkey and partial turnkey printed circuit board assembly services.We can produce customized  PCB board and PCBA for you ,PCB solder mask color ,material, thickness etc... all can be chosed as your demands.


Our service for smart toy product:
1. PCB manufacturing from 1 to 32 layers(Rigid PCB,Flexible PCB,Ceramci PCB,Aluminum PCB);
2. PCB Clone;
3. Component sourcing;
4. PCB Assembly;
5. IC program burning;
6. PCB/ PCBA Test.


Production Requirement for smart toy pcb assembly:
1.Gerber Files (Eagle and PCB File are available).
2.BOM list.
3.Clear pictures of PCBA or PCBA samples to us.
4.Pick N Place file.
5.Test procedure for PCB


How to get a quote ?

In order to give you an accurate quotation, we would like you to provide us with the listed information.
1.PCB: gerber file: material, board thickness, copper thickness, surface treatment, solder mask color, silk screen      color
2. PCBA: PCB file and BOM list
3. If you don't have ready-made files, you can send a sample and we will copy     the board for you




SMT Manufacturing Capability:

SMT Manufacturing Capability
Item
Manufacturing Capability in process
Manufacturing Method
Production size(Min/Max)
50×50mm / 500×500mm

Production board thickness
0.2 ~ 4mm






Printing solder paste
Support method

Magnetism fixture, vacuo platform


Clamping method

Sticking up by vacuo, clamping on both sides ,flexible clamping with sheet, flexible clamping with thick board
Cleaning Method of printing solder paste

Dry method+ wetting method+ Vacuo method
Accuracy of printing
±0.025mm

SPI
Repeated accuracy of volume
<1% at 3σ



Mounting component
Components size
0603(Option) L75mm Connector

Pitch
0.15mm

Repeated accuracy
±0.01mm


AOI
FOV size
61×45mm

Test speed
9150mm²/Sec

3D X-ray
Shootingangle
0-45

Detail For PCB:
Item
Capability
1.Base Material
FR-4 / High TG FR-4 /Aluminum /CEM-1/Rogers/Arlon/Taconic/Teflon
2.Layers
1-22
3.Finised inner/outer copper thickness
1-6OZ
4.Finished board thickness
0.2-7.0mm
5.Min hole size
Mechanical hole: 0.15mm Laser hole: 0.1mm
6.Controlled Impedance
+/-5%
7.Plugging vias capability
0.2-0.8mm
8.Outline profile
Rout/ V-cut/ Bridge/ Stamp hole
9.Surface treatment
HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP…




Q1.What is needed for quotation?
A: PCB Circuit Boards: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA: PCB information, BOM, (Testing documents...)


Q2. What file formats do you accept for production?
A: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)


Q3. Are my files safe?
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.


Q4. MOQ?
A: We accept small order,1PCS is available.We are able to handle Small as well as large volume production with flexibility.


Q5.Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
